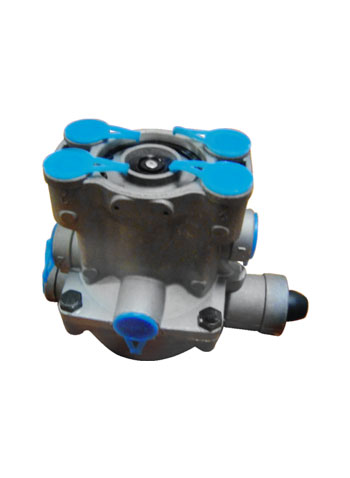

A circuit protection valve is a type of valve that is used to protect a circuit or system from damage caused by excess pressure or flow. There are several different types of circuit protection valves, including pressure relief valves, flow control valves, and pressure regulation valves. These valves can be used in a variety of applications, including hydraulic systems, gas systems, and fluid systems. They are designed to open and allow excess pressure or flow to be released when a certain threshold is reached, protecting the circuit or system from damage.
The valve opens to allow excess pressure to be relieved, ensuring the system operates within safe parameters. Circuit protection valves are commonly used in hydraulic, pneumatic, and other fluid-based systems, to protect against pressure spikes, leaks, and other potential failure modes.
The purpose of a circuit protection valve is to protect fluid systems, such as hydraulic and pneumatic systems, against overpressure conditions that can cause damage to the system and its components. The valve works by opening to relieve excess pressure when a predetermined pressure level is exceeded, thus maintaining safe operating parameters for the system.
The working principle of a circuit protection valve is based on the relationship between pressure and flow. The valve has a spring-loaded piston that is held in place by the pressure within the system. When the pressure exceeds a set level, the piston moves, allowing fluid to flow through the valve and relieve the excess pressure. The valve then closes again when the pressure drops below the set level, preventing further flow and maintaining a safe operating pressure for the system.
Circuit protection valves are typically manufactured to industry standards, such as ISO, DIN, and ANSI, to ensure consistent quality and performance. The selection of a circuit protection valve for a specific application depends on several factors, including the type of fluid being used, the maximum operating pressure and temperature, and the flow rate requirements.
Circuit protection valves are commonly used in a variety of applications, including:
Hydraulic systems: To protect against overpressure in hydraulic systems, such as those used in construction equipment, manufacturing machinery, and mobile vehicles.
Pneumatic systems: To prevent overpressure in pneumatic systems, such as those used in automation, process control, and material handling.
Fuel systems: To protect against overpressure in fuel systems, such as those used in automotive and aerospace applications.
Refrigeration and air conditioning systems: To protect against overpressure in refrigeration and air conditioning systems, such as those used in commercial and industrial buildings.
Overall, circuit protection valves play a critical role in maintaining the safety and reliability of fluid-based systems by preventing overpressure conditions that can cause damage and downtime.
